MAD Wurks Ackermann Plates for Single Post Steering Rack Conversion Mi9 (2)

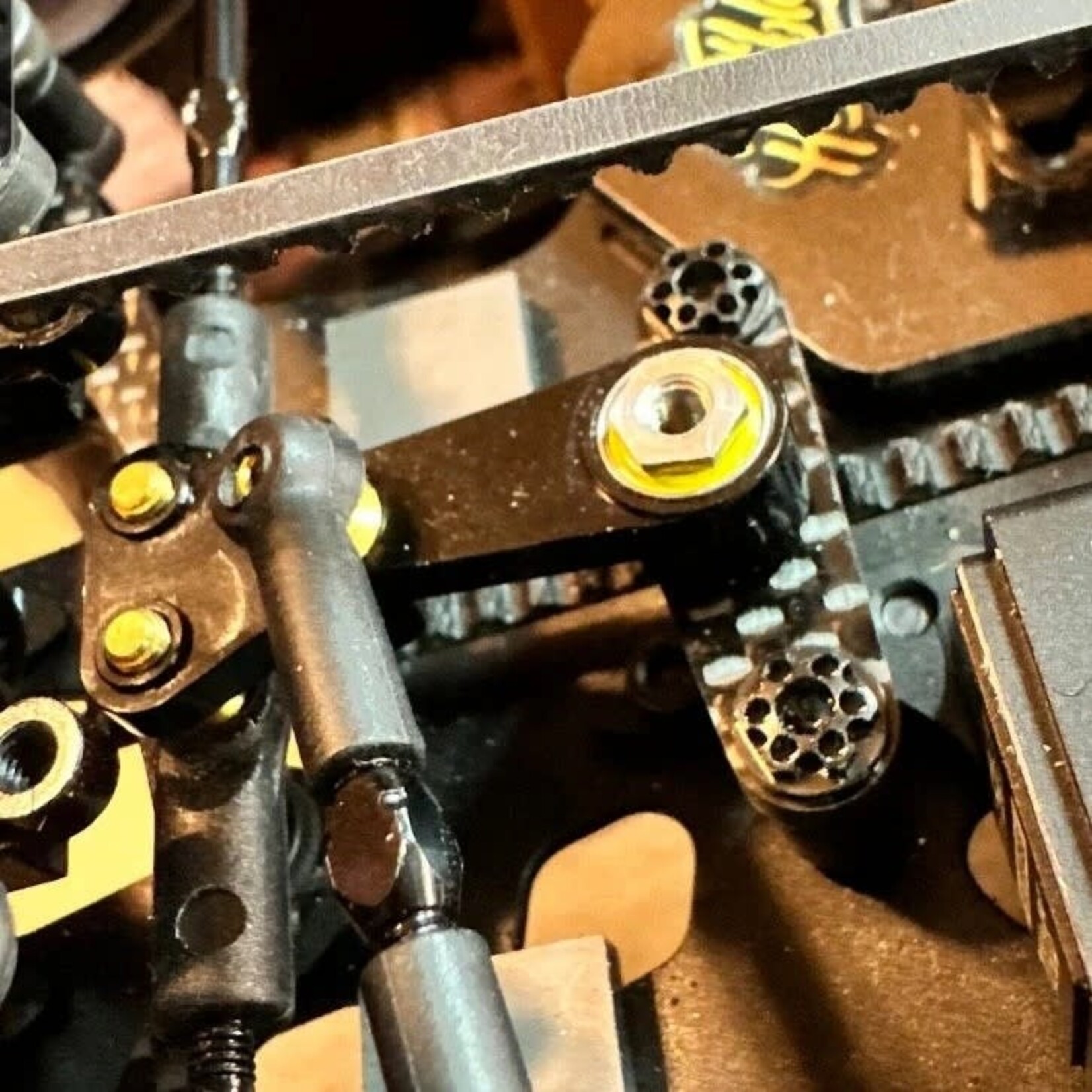

Schumacher Mi9 drivers, including team drivers, have been testing a new single post steering rack setup. The one piece missing from this conversion was an ackermann adjustment. Details below on other parts needed for this conversion.

After drivers tested several different ackerman settings, we went with a 0 offset and a +1 offset. The +1 can be flipped to provide a fwd or back position to give you a total of up to 2mm of ackermann adjustment with these plates.

Benefits of single post steering:

• More direct feel
• Less slop than a dual post steering rack
• Less scrub mid corner
• Less steering input needed
• Front tire wear improved especially outdoors

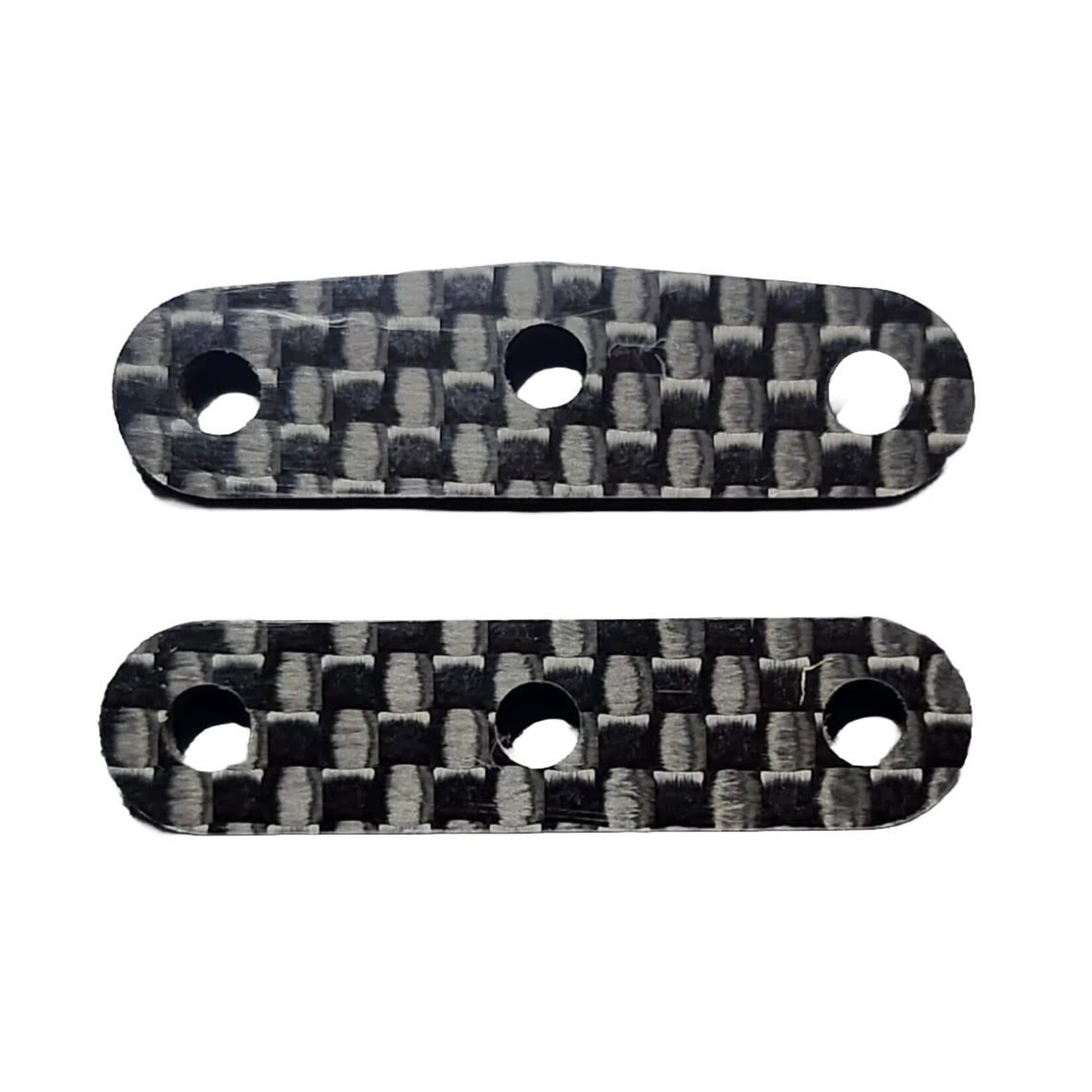

Includes:

(1) 0 Ackermann Plate
(1) +1 Ackermann Plate

Conversion Parts Needed (but not included):

1 - Schumacher U7938 - Chassis Post 8mm (pair)
1 - Schumacher U4689 - Steering Pivots Short
1 - Schumacher U8528 - Alloy Radius Arm
1 - Schumacher U1411 - 4x8x3 Ball Bearing (pair)
(This is the stock rack bearing so you can reuse them)
